Pre-charged mini-split line sets

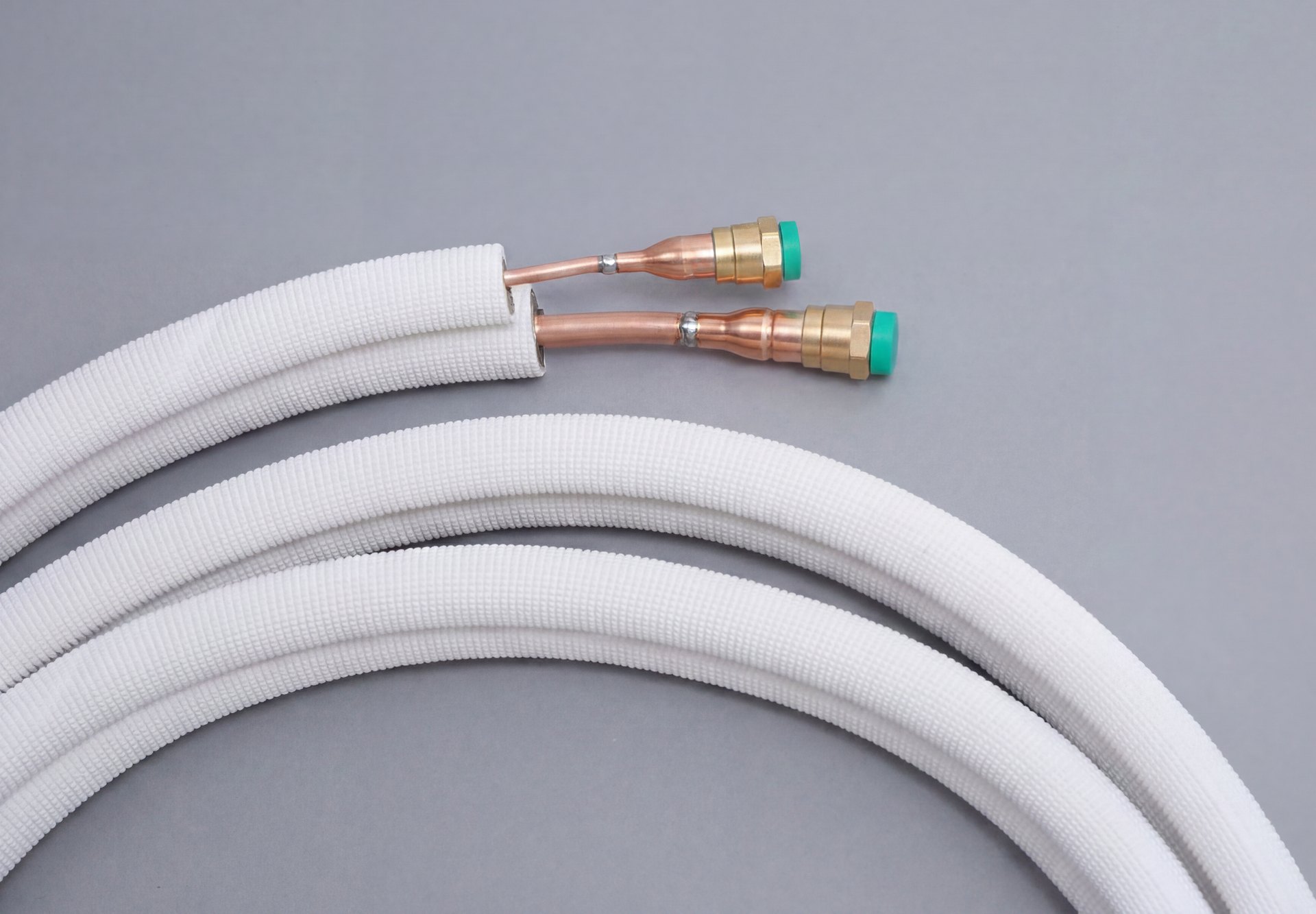

What is a pre-charged line set?

A pre-charged line set (also called a quick-connect or No-Vac line set) ships filled with refrigerant and capped with pre-flared, sealed couplings. On a standard install you'd cut and flare the copper, pull a deep vacuum to remove air and moisture, then measure and release refrigerant — work that practically and legally requires an HVAC tech, a vacuum pump, and EPA 608 certification. A pre-charged line set removes all of that on the line-set connection: you hand-tighten and torque the fittings, then open the service valves to release the sealed charge into the system.

That one difference is why pre-charged systems — like MRCOOL DIY — are the only mini-splits a confident homeowner can install without hiring a pro for the refrigerant work, and why contractors use them to cut labor and callbacks.

Pre-charged vs. flared line sets

Both use the same copper diameters and need a torque wrench. The trade-off: pre-charged sets are the easy, no-vacuum path but come in fixed lengths and are often brand-specific, while flared sets are more flexible but require a vacuum and the skills to match. If your system isn't a pre-charged / DIY model, you'll want a standard flared line set instead.

Pre-charged line sets for every application

Residential mini-splits

Pre-charged sets are built for ductless mini-splits in the common 12,000–36,000 BTU range and are the popular choice for DIY because, on compatible systems and where local rules allow, homeowners can install a mini-split without an EPA certification or HVAC license. Brands like MRCOOL DIY use quick-connect couplers instead of brazed joints — see our MRCOOL line set sizes guide for specifics.

Commercial and multi-zone

Larger split systems, multi-zone layouts, and longer building runs need heavier-duty sets and extended lengths — up to about 75 ft — to reach indoor air-handler locations from the outdoor condenser while keeping routing clean. Because pre-charged couplings are often proprietary to a specific brand and not universally compatible, always verify the refrigerant, fitting type, diameter, and system model before you buy to avoid a compatibility or charge error.

Heat pumps

Heat-pump mini-splits run the refrigerant circuit for both heating and cooling, so the line set sees year-round duty. The copper itself is the same — what matters for outdoor runs is weather-resistant insulation that holds up to sun, moisture, and temperature swings, and a set sized correctly for the system.

Sizes, lengths, and refrigerant

Pre-charged line sets use the same diameters as any mini-split — 1/4" × 3/8", 1/4" × 1/2", and 3/8" × 5/8" by capacity — but come in fixed lengths (commonly 16, 25, 35, and 50 ft) because the charge is matched to the length. Shorter 15–25 ft sets suit a close condenser-to-head placement; 25–50 ft covers larger homes, shops, and outbuildings. Pick the next length up and coil any slack — you can't shorten a pre-charged set. Need help sizing? Use the calculator or check the size chart.

Match the refrigerant — this matters most. A pre-charged set is filled for one refrigerant, so it has to match your system. New mini-splits use R-454B, the lower-GWP refrigerant that's replacing R-410A across the industry — our pre-charged sets are built for R-454B systems. Older 4th-generation and legacy units use R-410A, and the two are not interchangeable (for example, MRCOOL 4th Gen R-410A and 5th Gen R-454B sets won't cross over). Confirm your system's refrigerant and generation before ordering.

How pre-charged line sets are built

High-grade copper

Quality sets use C12200 ACR copper for corrosion resistance, clean refrigerant flow, and long service life, with smooth interior walls that keep flow efficient and precision-formed ends for secure, leak-resistant couplings.

Sealed quick-connect couplings

The couplings are the heart of a pre-charged set: factory-sealed to keep moisture out before connection, pressure-tested and leak-checked at the factory (quality sets are commonly tested to 400+ PSI), and built to stay locked under load when torqued to spec. That sealed design is also what prevents accidental refrigerant venting during a DIY connection.

Insulation and jacket

Because refrigerant lines pass through attics, walls, and exterior runs, both lines are wrapped in closed-cell foam to save energy and stop condensation, with a UV-resistant outer jacket and moisture barrier to protect outdoor sections from sun and weather. (Insulation color can vary by product; the job is the same — protect the copper and hold efficiency.)

Installing a pre-charged line set (no vacuum)

The refrigerant step is genuinely DIY-friendly, but the line still has to be handled right:

• Route carefully. Run the bundled line along joists or walls with insulated clamps; don't kink the copper or make sharp bends.
• Torque the couplings. Hand-tighten, then torque each quick-connect fitting to the manufacturer's spec — under-torque leaks, over-torque cracks the seal.
• Open the service valves. With everything torqued, open the valves to release the sealed refrigerant into the system.
• Coil excess horizontally. A pre-charged set can't be cut, so coil leftover length flat (horizontally) to avoid an oil trap, and place it where it won't kink, rub, or block service access.
• Mind the maximum length. The set is pre-charged for a maximum total run (often around 75 ft with an extension); beyond that, a pro may need to top off the charge.

Electrical, condensate, and mounting work is the same as any mini-split — it's only the refrigerant/vacuum step that pre-charging removes.

Why DIYers and contractors choose pre-charged

For DIYers: no brazing, no vacuum pump, no refrigerant scale or charging manifold on compatible systems — and the factory-measured charge avoids the under- or over-charging that causes poor cooling or compressor stress. Doing the install yourself can save thousands in labor versus hiring a pro.

For contractors: quick-connect fittings make fast, repeatable connections without brazing, factory-controlled charge gives consistent results across jobs, and less refrigerant handling means fewer callbacks. Either way, always test operation after startup, check for leaks, and verify performance and code compliance — a pre-charged set makes the job easier, not optional.

Shop pre-charged line sets

Browse pre-charged, quick-connect line sets in the common mini-split sizes and lengths, built for R-454B systems. Confirm your size and refrigerant against your manual, then order the set that cuts your install time in half. Not sure what you need? Find your size in seconds, then add the matching set to your cart.
