How to install a mini-split line set
Short answer: To install a mini-split line set: mount the indoor head and run the line set through the wall, set the outdoor condenser, then connect the refrigerant lines, hand-tightening the couplers on a quick-connect system or flaring and vacuuming on a flared one. Connect the wiring and power on. Most leaks come from a bad flare or an under-tightened fitting.
The line set is the copper that carries refrigerant between your indoor head and outdoor condenser — and connecting it correctly is the step that makes or breaks a mini-split install. This guide walks the whole process, for both flared and quick-connect systems, plus the mistakes that cause most leaks. First, size it right with our size calculator.
Know your connection type first
Two kinds of mini-split exist, and the install is very different. A pre-charged, quick-connect system (such as MRCOOL DIY or Zone Air) uses factory-flared lines with sealed couplings — no flaring, no vacuum, true DIY. A field-flared system (Pioneer, Mitsubishi, Daikin, Fujitsu, most pro installs) needs you to flare the copper, pressure-test, and pull a vacuum, which requires gauges, a vacuum pump, and typically EPA 608 certification to handle refrigerant. Confirm which you have before you buy tools.
Before you start
- Size the line set. Diameter is set by your system's capacity, and length by your run. Use the calculator, the size chart, or your brand guide, then confirm against your unit's manual.
- Gather tools. For a flared install: a flaring tool, tube cutter, deburring tool, torque wrench, manifold gauges, a vacuum pump, and a refrigerant leak detector. For quick-connect: usually just two wrenches.
- Check the refrigerant. Match your gauges, tools, and any added charge to your system's refrigerant — see R-410A vs. R-454B.
Step by step
- Plan the route. Pick the shortest practical path from the indoor head to the condenser, with as few bends as possible. Mark the wall penetration so the line set, drain, and wire can pass through together, and keep the hole pitched slightly downward to the outside so condensate drains away.
- Uncoil carefully. Roll the line set out flat — don't pull loops off the coil, which twists and kinks it. A single kink restricts flow and ruins the line, so go slow and make only wide, gradual bends by hand (or a tube bender for tight turns).
- Pass it through the wall. Feed the line set, condensate drain, and control wire through the wall sleeve. Protect the copper at the edge of the hole, and keep the insulation continuous so no bare copper is exposed.
- Make the connections. On a flared system, cut the copper square, deburr it, slip on the flare nut, flare the end, then thread it onto the service valve and tighten to the manufacturer's torque spec — too loose leaks, too tight cracks the flare. On a quick-connect system, line up the couplings and tighten by hand, then with a wrench until they fully seat.
- Pressure-test and vacuum (flared only). Pressure-test for leaks, then pull a vacuum — typically down to around 500 microns — to remove air and moisture. Confirm it holds, then open the service valves to release the factory charge. Quick-connect, pre-charged systems skip this step entirely.
- Insulate and support. Seal and insulate every connection, tape the line set bundle, and support it every few feet so it isn't hanging on the fittings. Leave a small drip loop where lines enter the wall.

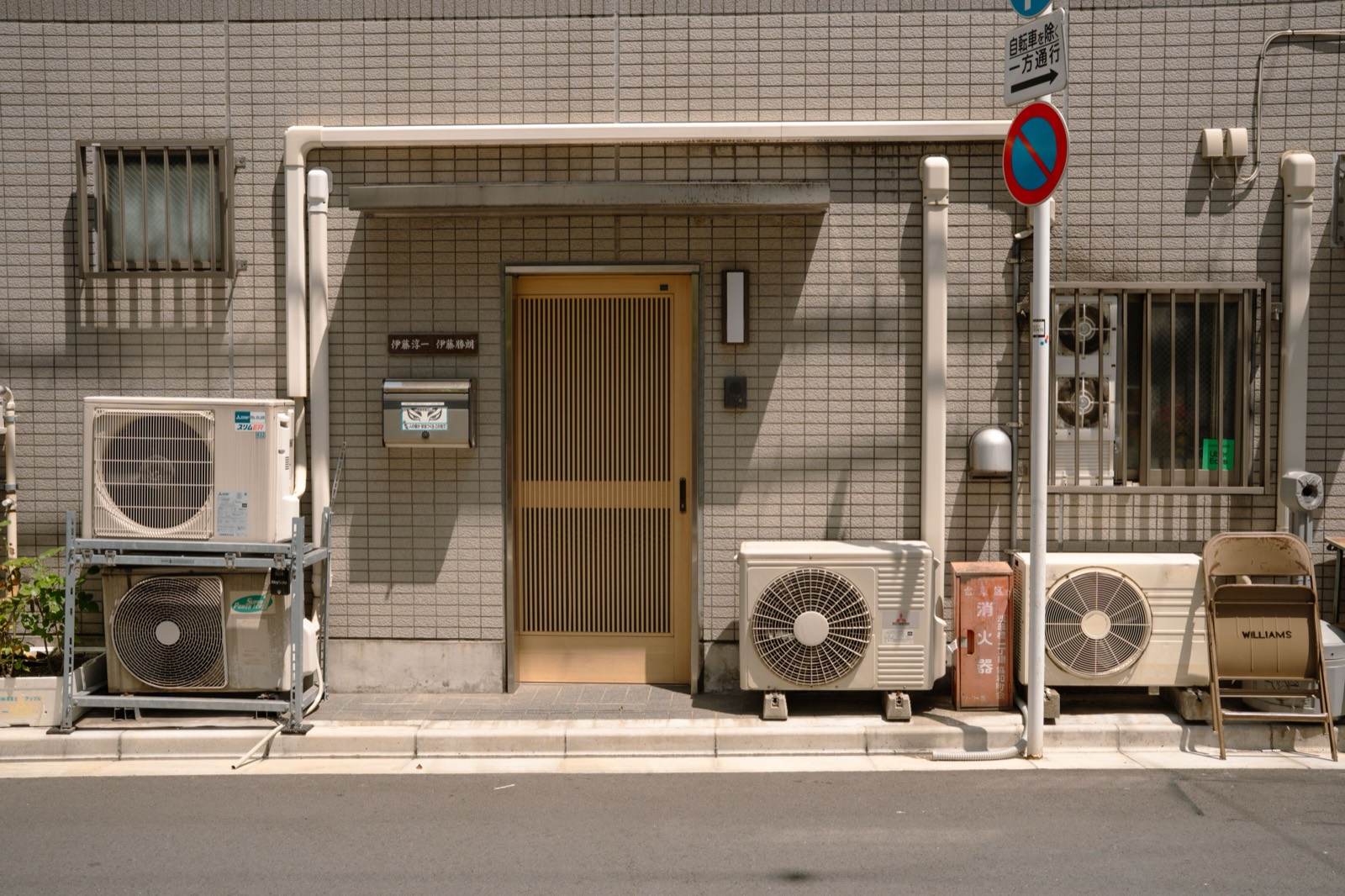

- Finish the outside. Mount the condenser level on a wall bracket or stand, and hide the exposed run with line set covers for a clean, weatherproof finish.
Common mistakes to avoid
- Kinking the tubing while uncoiling — the single most common way to ruin a line set.
- Over- or under-torquing flare nuts — use a torque wrench to the spec, not feel.
- Skipping the vacuum on a flared system — trapped moisture causes acid, ice, and early compressor failure.
- Wrong size — too small starves the system; too large hurts oil return. Match the manual.
- No drip loop or downward pitch — lets water track back along the lines into the wall.
DIY or call a pro?
A pre-charged quick-connect install is realistic for a careful DIYer with basic tools. A field-flared install crosses into pro territory: handling refrigerant legally requires EPA 608 certification, and the flaring and vacuum steps leave little room for error. If you're not equipped for that, buy the parts and have a licensed tech make the connections. Either way, getting the right line set and sizing is the part you can nail before anyone picks up a wrench.
Common questions
Can I install a mini-split line set myself?
Yes, if you're careful and your system suits it. A pre-charged quick-connect system (like MRCOOL DIY) is the most DIY-friendly because it skips flaring and the vacuum step. A field-flared system requires flaring the copper, pressure-testing, and pulling a vacuum, which needs a vacuum pump and gauges and typically EPA 608 certification to handle refrigerant. Know which type you have before you start.
Do I need a vacuum pump to install a line set?
For a standard field-flared system, yes — you must pull a vacuum (typically to around 500 microns) to remove air and moisture before releasing the refrigerant, or the system will run poorly and may fail early. A pre-charged quick-connect line set is the exception: the lines arrive sealed and charged, so no vacuum pump is required.
How do you connect a line set to a mini-split?
On a flared system, you flare the copper ends and thread the flare nuts onto the service valves, tightening to the manufacturer's torque spec. On a quick-connect system, you line up the factory couplings and tighten them by hand and then with a wrench until they seat. In both cases, support the line set and insulate the connections afterward.
Can I bend a line set around corners?
Gently, yes — make wide, gradual bends by hand and never kink the tubing. A kink restricts refrigerant flow and can't be undone, ruining the line set. For tight turns, use a tubing bender on the bare copper, and plan the route to keep bends to a minimum.
Can I reuse an old line set?
Usually it's best not to. Reused copper can hold old oil, moisture, or debris that contaminates a new system, and the flares may not reseal cleanly. If you're changing refrigerant types, follow the manufacturer's changeout procedure — many require new lines. For a new install, a fresh line set sized to your run is the safe choice.
This guide is general information, not a substitute for your unit's installation manual or a licensed professional. Handling refrigerant in the United States requires EPA Section 608 certification. Always follow the manufacturer's instructions and local code, and verify line set size, torque specs, and vacuum requirements for your specific system before installing.
